Name: Metcop Glazed tile roof panel roll forming machine metal tile forming machine
Brand: ZHONGHENG
Price: 17 USD

Brand Name : ZHONGHENG

Model Number : ZH 960

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : 17,000 USD

Payment Terms : L/C, T/T

Supply Ability : 50 sets /month

Delivery Time : 40 working days

Packaging Details : with plastic film cover

Material : PPGI/GI /Alunimun

Tile type : Galvanized/color-coated/cold-rolled/Aluminium zinc steel sheet

Voltage : 380V 50Hz 3phases

Use : Roof

After-sales service provided : Engineers available to service machinery overseas,Online support,Video technical support

Dimension(l*w*h) : 8700mm*1500mm*1500mm

Control system : PLC control system

Roller material : quenched,45# steel,CNC machining,heat-treatment and hard chrome 0.05mm

Cutting blade material : Cr 12 Mov

Contact Now

Metcop Glazed tile roof panel roll forming machine metal tile forming machine

Description

This model of machine is popur in Nigeria market Raw material width is 1200m and effective width is 960mm

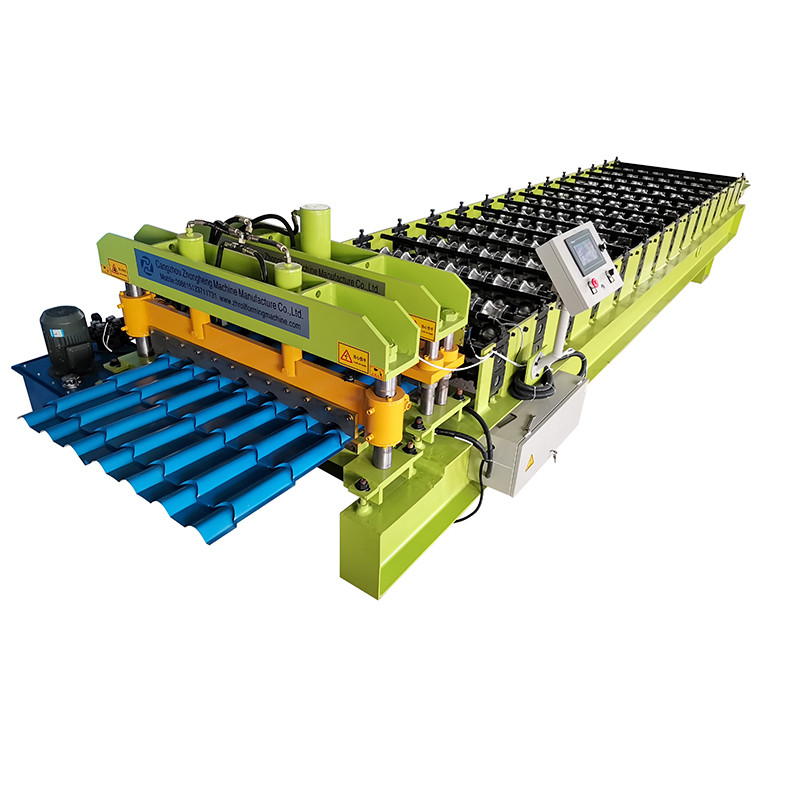

Machine pictures

Metcop Glazed tile roof panel roll forming machine metal tile forming machine

Speficiation

1.	Coil Type	Pre-painted coil,Galvanized steel,Aluminum
2.	Width	1200mm
3.	Thickness range	0.3-0.6mm
4.	Yield stress(mm)	Q235
5.	Effective width	960mm

1	Power Requirement	Voltage	380v/3ph/50hz
		Main Motor power	4kw
		Cutter power	3kw
2	Forming speed		2-3m/min
3	Forming stations		15 row
4	Forming shaft diameter		70mm
5	Chains		1 inch
6	Type of cutting		Roll formed and length-set cutting
7	Control system		PLC control
8	Install dimension(depend on the final design)		7.5m×1.5m×1.2m
9	Total weight (Approx)		4.8T

Components of line

1) Manual De-coiler ------------------------------------------------------ 1 set

2) Roll Forming System--------------------------------------------------- 1set

3) Cutting Device---------------------------------------------------------- 1set

4) Hydraulic System------------------------------------------------------- 1 set

5) PLC Control System----------------------------------------------------1 set

6) Run out table ----------------------------------------------------------- 1 set

Machine loading

Metcop Glazed tile roof panel roll forming machine metal tile forming machine
