10 Forming Stations Drywall Stud And Track Forming Machine Producting C Z U L Channel

Brand Name : ZH

Model Number : ZH-45

Certification : CE

Place of Origin : Hebei , China

MOQ : 1 set

Price : USD8000-15000 per set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50 sets per month

Delivery Time : 30 days

Packaging Details : One set machine needs one 40GP for shipment , PLC system packed with Carton box .

Type : 10 Forming Stations Drywall Stud And Track Forming Machine Producting C Z U L Channel

Feature : Advanced design

Special : Hydraulic cutting

Power : 5.5+4KW

Volgate : 380V or custom

Roller : No.45 steel with heat treatment

Warranty : 1 year free

Service : Whole life

Contact Now

10 Forming Stations Drywall Stud And Track Forming Machine Producting C Z U L Channel

10 Forming Stations Drywall Stud And Track Forming Machine Producting C Z U L Channel

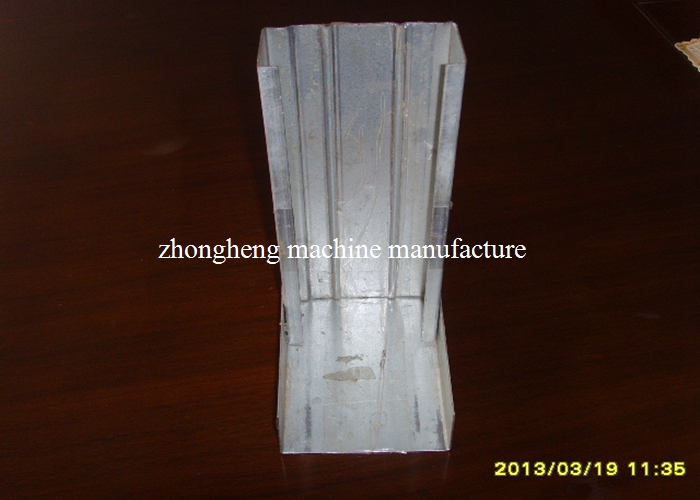

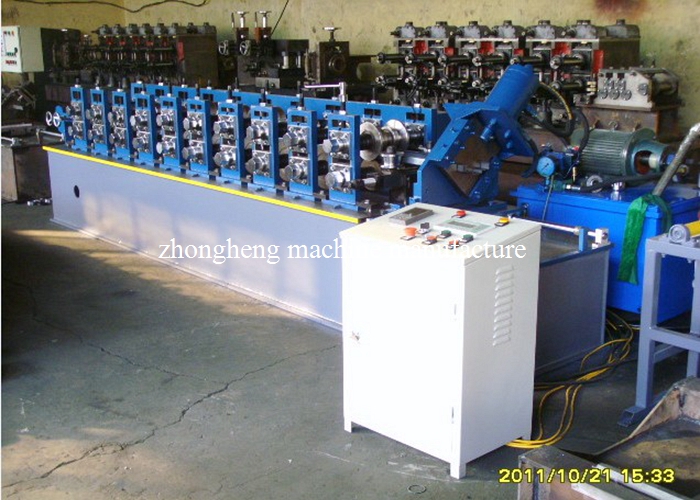

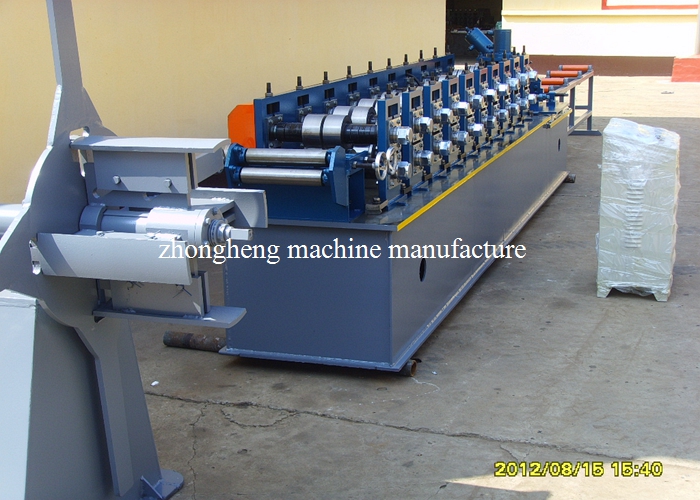

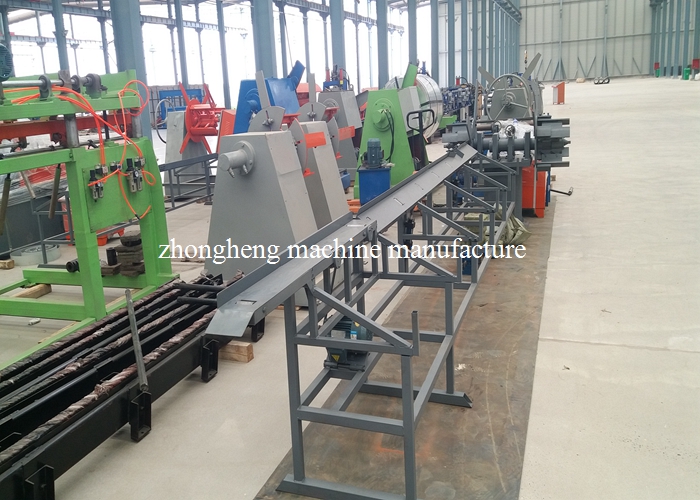

1.Machine picture

10 Forming Stations Drywall Stud And Track Forming Machine Producting C Z U L Channel

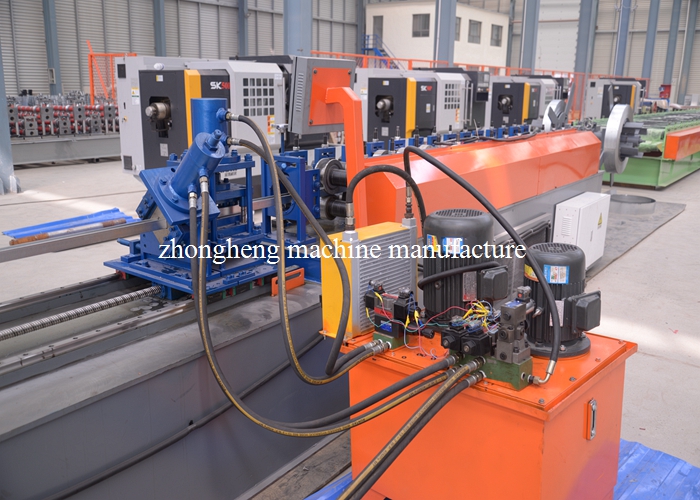

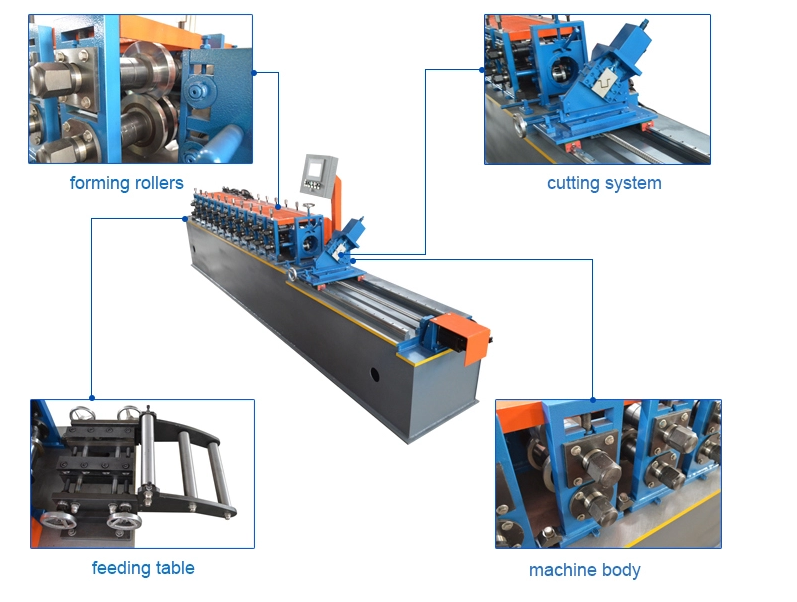

2 Detailed picture

3. Components of machine

No.	Name	Qty
1.	De-coiler	1 Set
2.	Roll Forming Machine	1 Set
3.	Hydraulic Cutting Device	1 Set
4.	PLC Control Box	1 Set
5.	Hydraulic Pump	1 Set
6.	Output table	1 Set

Decoiler

Type	Manual type(standard)	Hydraulic type(option)
Width	300mm	500mm
Capacity	Max 3tons	From 3-5 tons
Inner diameter	φ450-550mm	φ450-550mm
Outer diameter	φ1500mm	φ1800mm

10 Forming Stations Drywall Stud And Track Forming Machine Producting C Z U L Channel
roll forming

Item

Parameter detail

Processing Material

GI and PPGI

Material thickness

0.4-0.8mm

Machine frame

360#H steel, Adopt diagonal line welding, leveling instrument measurement to make sure the final frame is high-precision

Machine siding panel

plate type	Pillar type(option)

Plate thickness:20mm	Pillar thickness:30mm
Painting:normal painting	painting:Chroming

Forming stations

10-22 stations(according to the profiles)

Machine rollers

high grade Cr12 steel,plated hard chroming with thickness 0.05mm
Processing way:cutting--drilling--CNC lathing--quenching--CNC lathing--chroming

Machine Shaft

φ60-70mm high garde No.45 steel after treatment,

Machine spacers

CNC lathing in high-precision

Machine bearings

China Haerbin bearing or SKF international bearing(option)

Driving system

Gear or gear box(option)

Machine power

3kw-5.5kw(according to the profiles)

Machine working speed

8-12m/min or 10-30m/min(option)

Machine adjust type

After machine installation, we will test it ourselves, compare with the profile drawing, the difference is controlled in 0.5mm

10 Forming Stations Drywall Stud And Track Forming Machine Producting C Z U L Channel

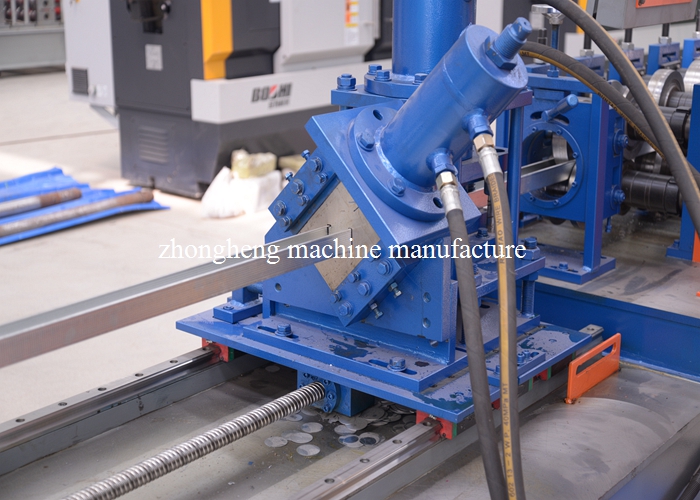

Cutting

Type	Mould cutting type
Blade material	Cr12mov quenching and grinding
Frame processing	the whole bottom frame is grinding for high-precision
Blade processing	wire-electrode cutting, but the upper balde can not be straight. this is technology
Working	Hydraulic type

10 Forming Stations Drywall Stud And Track Forming Machine Producting C Z U L Channel

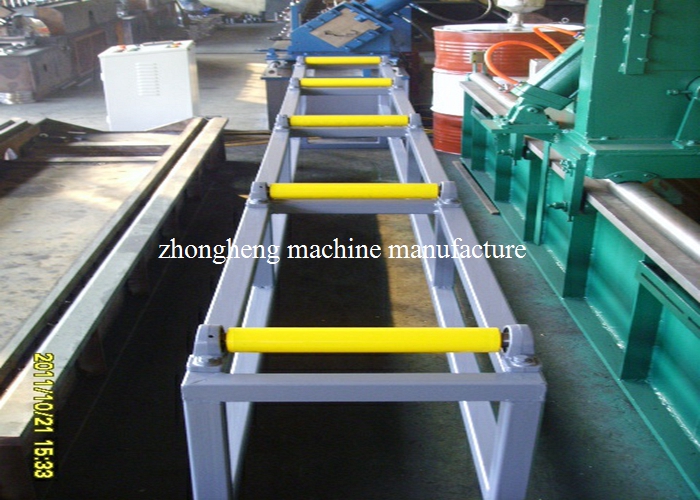

Stacker

Type	Manual	Auto(option)
Length	1.5m-2m	6m or 12m

10 Forming Stations Drywall Stud And Track Forming Machine Producting C Z U L Channel

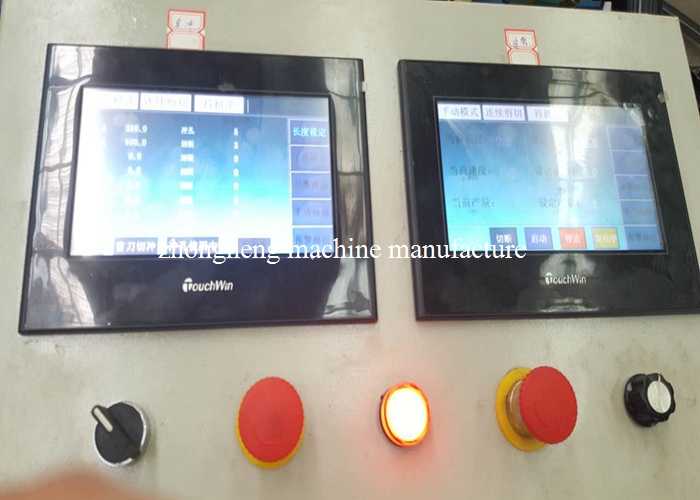

PLC

Main item	Parameter detail
PLC	Delta(standard) or according to your request
Inverter	China brand(standard) or according to your request
Touch screen	Mcgs(standard) or according to your request
Encoder	China brand(standard) or according to your request
Voltage/HZ/Phase	380v/50-60hz/3phase

10 Forming Stations Drywall Stud And Track Forming Machine Producting C Z U L Channel
Hydraulic pump

Main Item	Parameter detail
Motor	3kw China brand or according to your request
Pump	China brand or according to your request
Solenoid valve	China brand or according to your request
Cooling system	Cooling fan

10 Forming Stations Drywall Stud And Track Forming Machine Producting C Z U L Channel

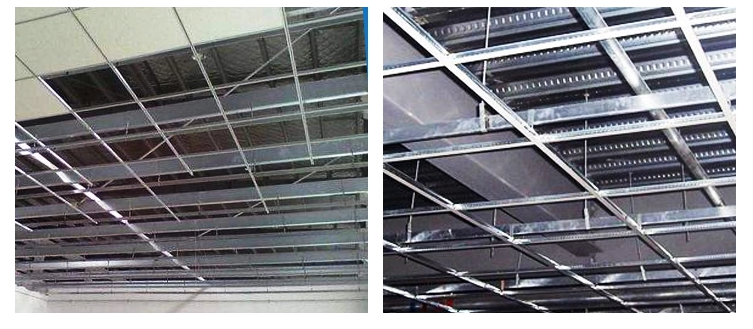

Description

1. Metal stud and track roll forming machine is the most common machine to produce cold rolled C stud and u track profiles. It is the most popular machine in light building construction area.
2. We are professional manufacturer of metal stud and track roll forming machine and have lots successful experiences. Our roll forming machine for C stud and u track can make the C stud and u track from thickness 0.5mm-1.2mm. Very portable!
3. The whole line of metal stud and track roll forming machine include the automatic decoiler or manual decoiler for 3ton coils , roll forming machine include the guide& feeding device, cutting blade drived by hydraulic power and auto stacker or manual stacker for finished products.
4. This line can be automatic running by inputting the length and batches in the PLC system.
5. The strong H beam base is treated to avoid the vibration when working.
6. All the rollers are hardness quenched to guarantee the life
7. The human computer interface operate system will save human source to operate the production line.
