Colored Steel Corrugated Roof Sheet Roll Forming Machine With Cut To Length Devices

Name: Colored Steel Corrugated Roof Sheet Roll Forming Machine With Cut To Length Devices
Brand: ZHONGHENG
Price: 22500 USD

China Colored Steel Corrugated Roof Sheet Roll Forming Machine With Cut To Length Devices wholesale

Brand Name : ZHONGHENG

Model Number : ZH27-200-1000

Certification : ce/sgs

Place of Origin : China

MOQ : 1 set

Price : USD 22500-32000

Supply Ability : 30 sets /month

Delivery Time : 25 working days

Packaging Details : plastic film cover

Material : PPGI

Diameter of the shaft : 75mm solid

Motor : 5.5kw

Pump : 4kw

Speed : 10-15m/min

Chains : double 0.6 inch

Contact Now

colored steel Corrugated Roof Sheet Roll Forming Machine with cut to length devices

Colored Steel Corrugated Roof Sheet Roll Forming Machine With Cut To Length Devices

A. General

Suitable Material

No.	Item		Parameter	Note
1	Suitable	Type	PPGI & PPGL
		Width	1220mm
	Material	Thickness	0.30—0.80mm
		Yield stress	240Mpa TO 550Mps
2	Product	Cover width	1000mm±2mm	Refer to drawing
		Wave height	28±1mm
	Specs	Pitch Width	200±2mm
		Length	Any length
3	Machine	Active shaft	No. 45 steel
		Roller	70mm and No. 45 steel Chrome plated
	Material	Cutting Blade	SKD11
4	Power Requirement	Type	440AC/50HZ	Customized
		Main motor	15Kw
		Hydraulic	4kw
5	Speed	Forming Speed	4-8m/min	Excludes Cutting
	Hydraulic	Type	Automatic with coil car
		Max. Capacity	10 T
6	Automatic	Suitable coil OD	1200mm
		Suitable coil ID	508mm
	Decoiler	Max Coil width	1250mm
		Uncoiling style	Active uncoiling
7	Forming Stand		About 22-24 groups	Complete full rollers
8	Transmission style		Chain, sprocket	Entire chain
9	Main machine structure		Guide column or wallboard
10	Type of Cutting		length-set cutting

Q235 or equivalent

Material Thickness

0.25-0.8 mm

Material Width

914, 1000, 1200, 1220 or 1250, as per the drawing

Dimension

About 5.9*1.3*1.1m(L*W*H) , as per the drawing

Working Space

About 15.9*2.8m(L*W) , as per the drawing

Length of

the Sheet

You can set the length according to your need.

It is controlled by PLC

which can ensure the accuracy of ±1mm.

Cutting

Automatically stop and cutting when it comes to the set

length.

B. Components Details

Roller Material	High grade 45# steel. Hard chrome plating, 0.05mm.
Main Frame	350# steel. More stable and no shaking.
Middle Plate	16mm. We use thicker plates to ensure stability of our products.
Forming Steps	11-16, according to the drawing.
Shaft Material	Φ70 mm, high grade 45# steel.
Shaft Material	Treating process: tempering- finish turning, high rigidity, hard to deform.
Cutting Blade Material	Cr12, hardness HRC60-62.
Cutting Blade Material	Treating process: heat treatment- plane abrasion- wire electrode cutting.

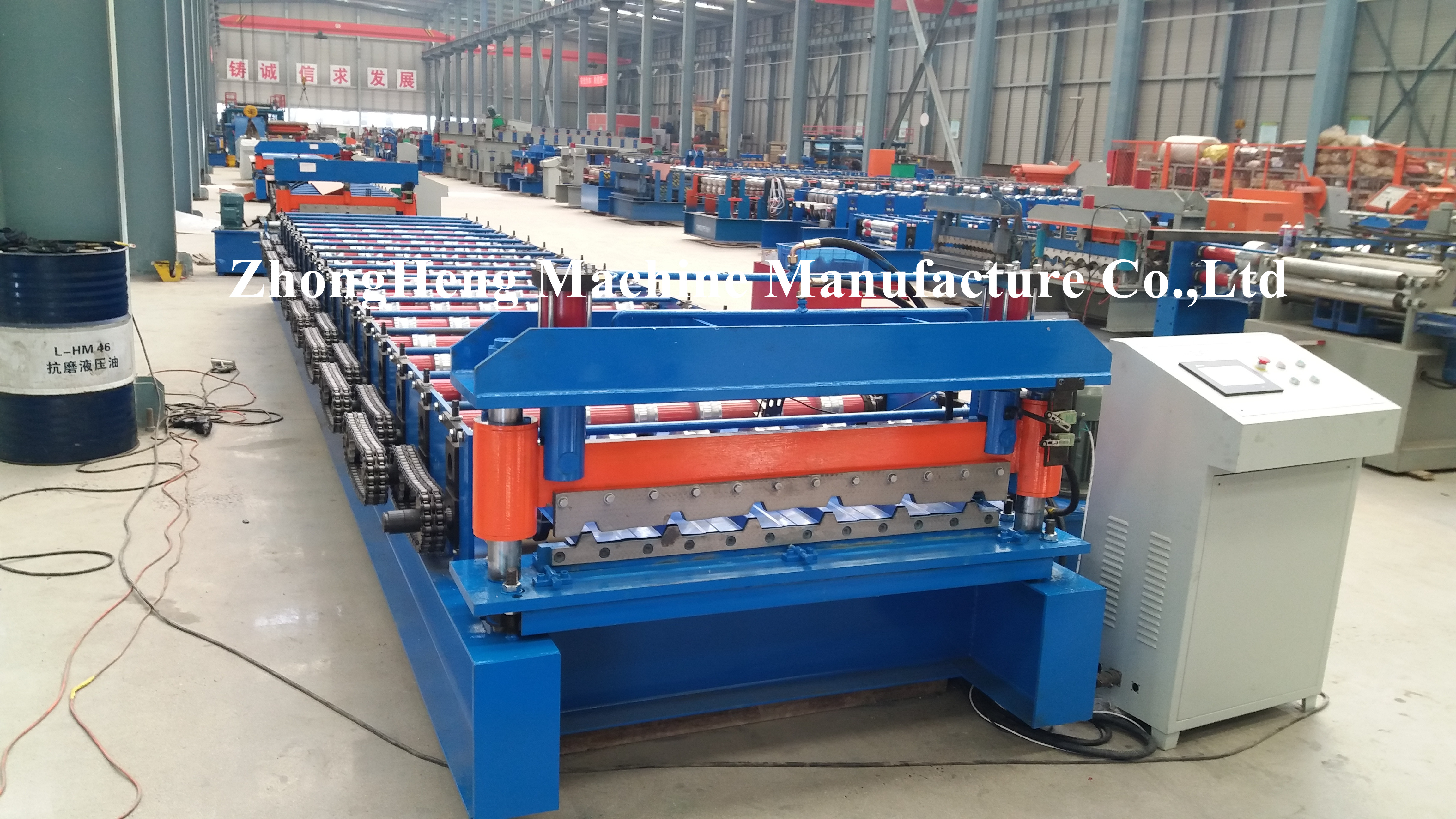

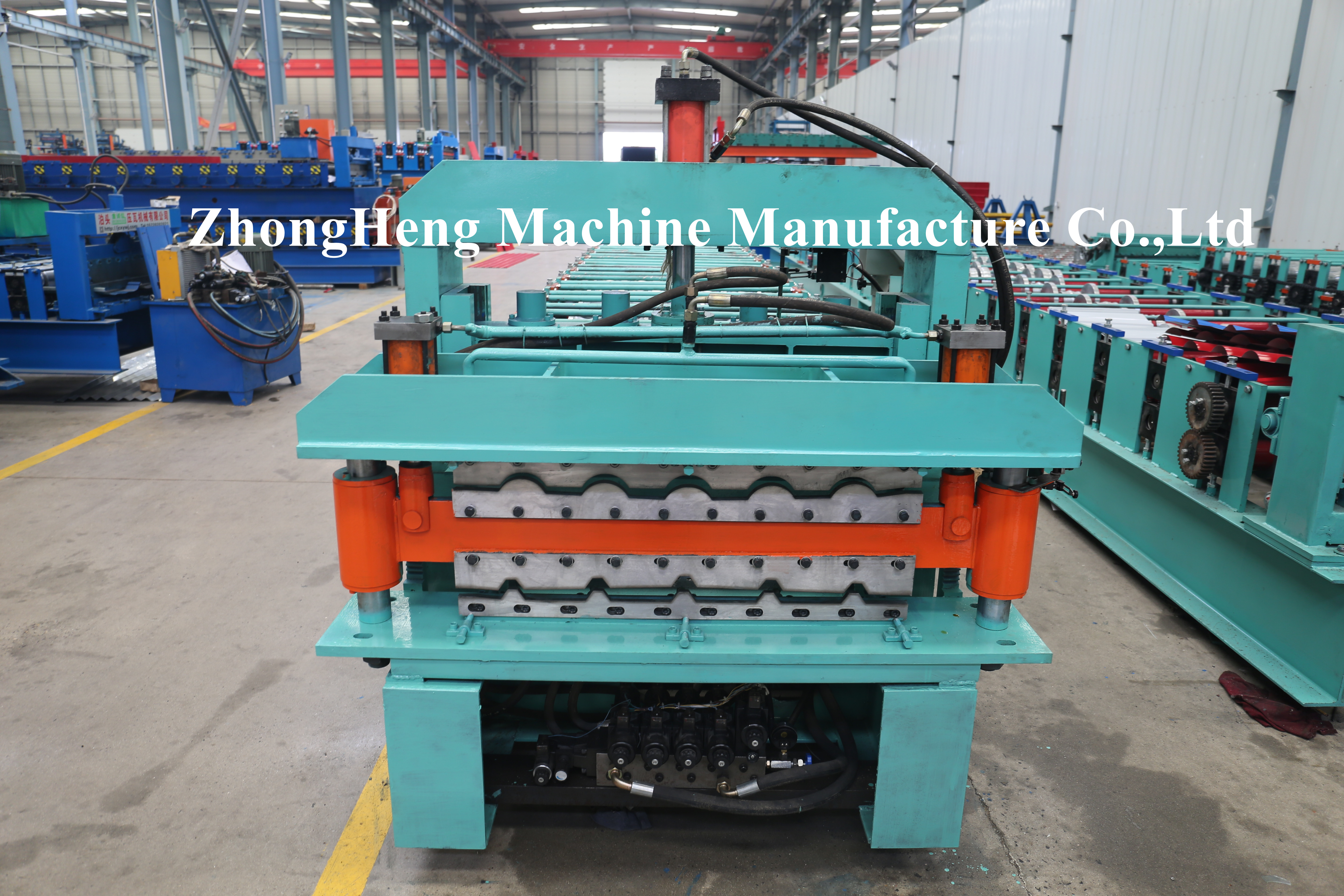

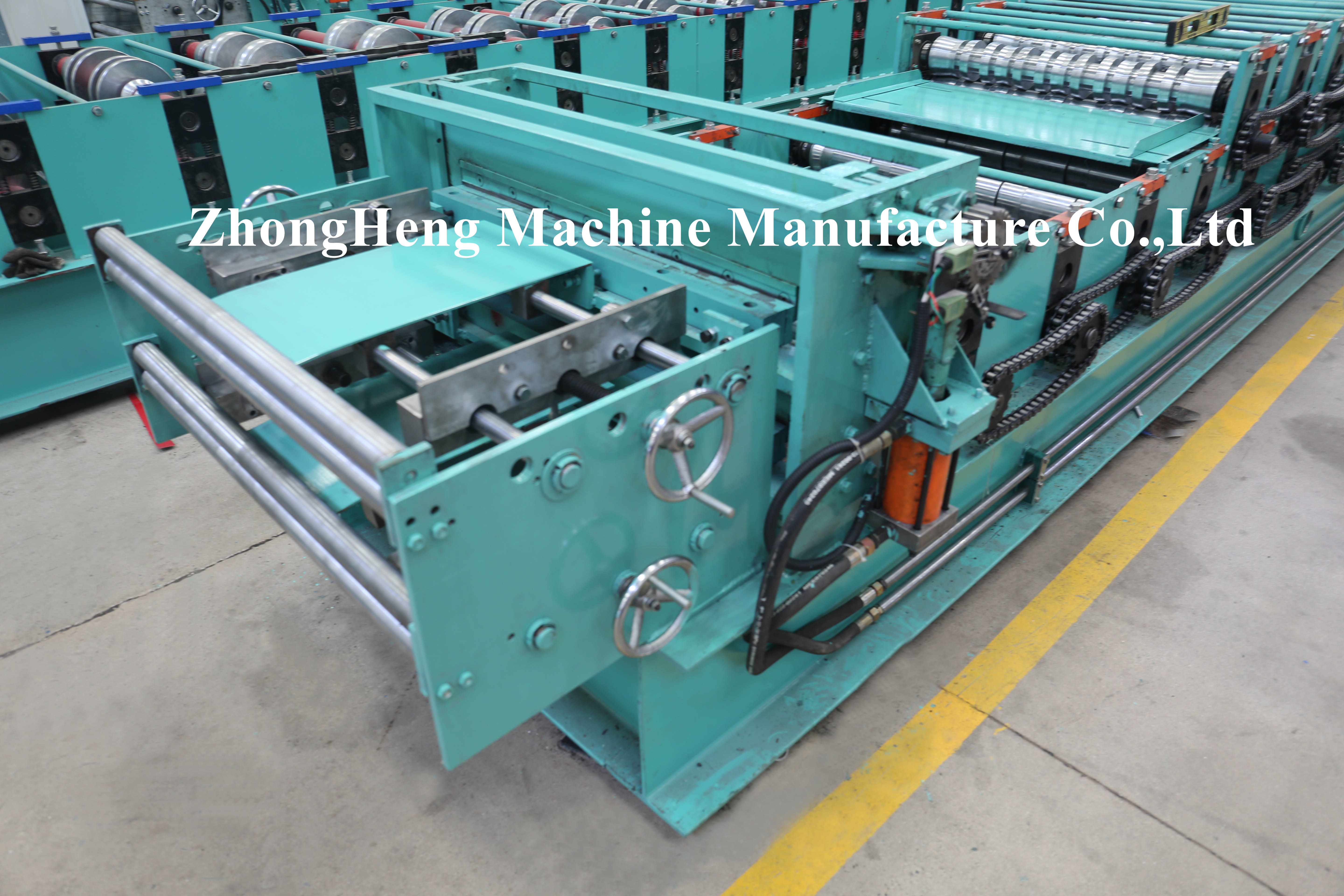

3. machine pictures

Colored Steel Corrugated Roof Sheet Roll Forming Machine With Cut To Length Devices
