Colour Steel Corrugated Roll Forming Machine / Sheet Making Machine 7.5 kw 8T

Name: Colour Steel Corrugated Roll Forming Machine Sheet Making Machine 75 kw 8T
Brand: ZHONGHENG
Price: 32000 USD

China Colour Steel Corrugated Roll Forming Machine / Sheet Making Machine 7.5 kw 8T wholesale

Brand Name : ZHONGHENG

Model Number : ZH18-76

Certification : CE/SGS/ISO9001

Place of Origin : China

MOQ : 1 set

Price : $ 32000-42000/set

Supply Ability : 100 sets/months

Delivery Time : 25 working days

Packaging Details : Water proof plastic film cover

Condition : New

Feeding width : 1000mm/914mm/950mm/1200mm

Suitable material : PPGI / GI

Use : Roof

Warranty : 2 years

Thickness range : 0.18mm-0.28mm

Contact Now

Colour Steel Corrugated Roll Forming Machine / Sheet Making Machine 7.5 kw 8T

Colour Steel Corrugated Roll Forming Machine / Sheet Making Machine 7.5 kw 8T

Description:

This kind of corrugated sheet forming machine is different model from the normal corrugated sheet forming machine, it is specially produce the thickness 0.18mm - 0.28mm galvanized steel, it has 3.2meters, 4meters, 6meters three types. Its formed by pieces of sheet not coils.

Specification

No.	main parameter of Roll Forming Machine
1	Suitable to process	Color steel plate
2	Width of the plate	4000mm
3	Dimensions	4.51.451.21m
4	Power	7.5kw
5	Thickness of the plate	0.15-0.3mm
6	Productivity	20-25m/min
7	Weight	About 8T
8	Voltage	380V 50Hz 3phases
9	Control system	PLC contro

Applications:

Roof metal profile machine is widely used in villa , holiday village , gardening industrial building, storage, scenic tourist area, pavilions, hotel, exhibition hall and so on. And we are emphasis on the detail and the technical update constantly.

Competitive Advantage:

1. save space

2. easy installation

3. best after-sale service

4. excellent quality

5. Operate easily

Welcome to make order

Whatsapp number:008615133711731

Product Tags:

corrugated sheet roll forming machine

roll former machine

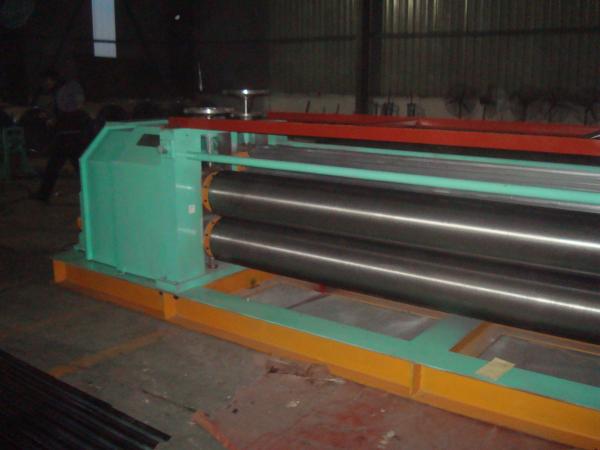

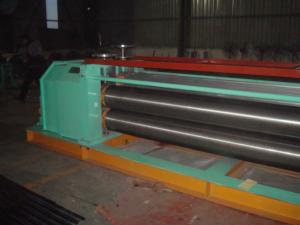

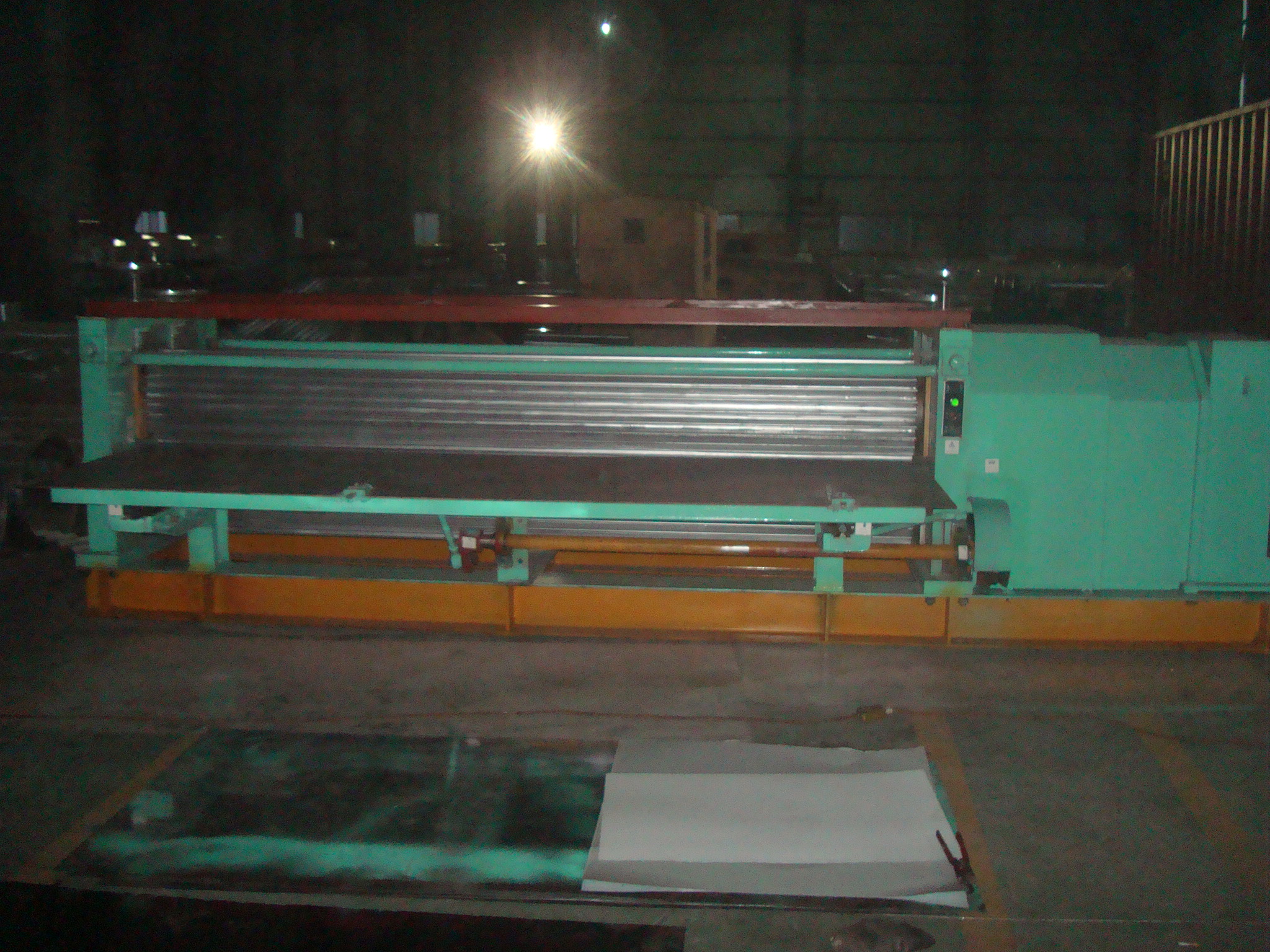

Colour Steel Corrugated Roll Forming Machine / Sheet Making Machine 7.5 kw 8T Images
