3kw High Speed Shutter Door Roll Forming Machine Space Save In Blue Color

ZhongHeng Machine Manufacture Co.,Ltd

3kw High Speed Shutter Door Roll Forming Machine Space Save In Blue Color

Brand Name : ZHONGHENG

Model Number : ZH122

Certification : CE / SGS / ISO9001

Place of Origin : China

MOQ : 1 set

Price : USD5000-8000/set

Supply Ability : 50 sets/months

Delivery Time : 25 working days

Packaging Details : Packed in plastic film cover

Condition : New

Type : Roll Forming Machine

Usage : Door

Product Capacity : 8-10m/min

Warranty : 2 years

color : blue

Motor : 3kw

Contact Now

roller shutter door ,kinds door forming machine with high speed

Applications:

The shutter door is widely used in kinds of area ,such as shop ,workshop , its for out shutter door, easy to operate and well loacked.Some area using it with punching holes some without holes .

There are two kinds of cutting method ,one is mold cutting another is saw cutting .

Specification

NO.

ITEM

PARAMETER

NOTE

1.

Suitable

material

Type

steel strip

Width(mm)

122mm

Thickness(mm)

0.3-0.8mm

Yield stress(mm)

G220-G300

2.

Product

specifications

Detail as the attached file

Length

Any length

3.

Power

requirement

Type

380v/3ph/50hz

Motor brand shanghai Lichao

Main Motor power

3kw

Cutter power

4kw

4.

Forming speed(m/min)

8m/min

Not include the time of cutting

5.

Forming stand

13

Depend on actual design

6.

Thickness of structure

14mm

7.

Forming shaft diameter(mm)

40 solid

8.

Type of cutting

Roll formed and

length-set cutting

9.

Control system

PLC and inverter

10.

Install dimension (depend on the final design)

4.2m×0.8m×1m

Without panel length

11.

Total weight (Approx)

2.6T

Depend on final design

Components

NO

Name

Unit

Qty

1

Man-made decoiler

set

1

2

Main machine for roll forming

set

1

3

Control system

set

1

4

Hydraulic system

set

1

Competitive Advantage:

1. save space

2. easy installation

3. perfect service

4. excellent quality

5. Operate easily

Contact us

Mobile/whatsapp :008615133711731

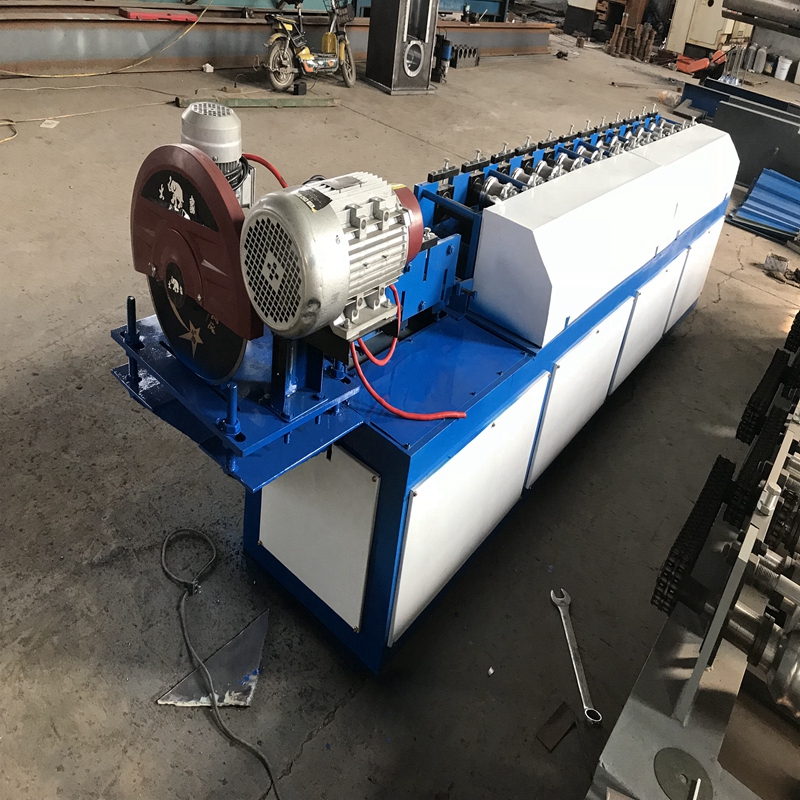

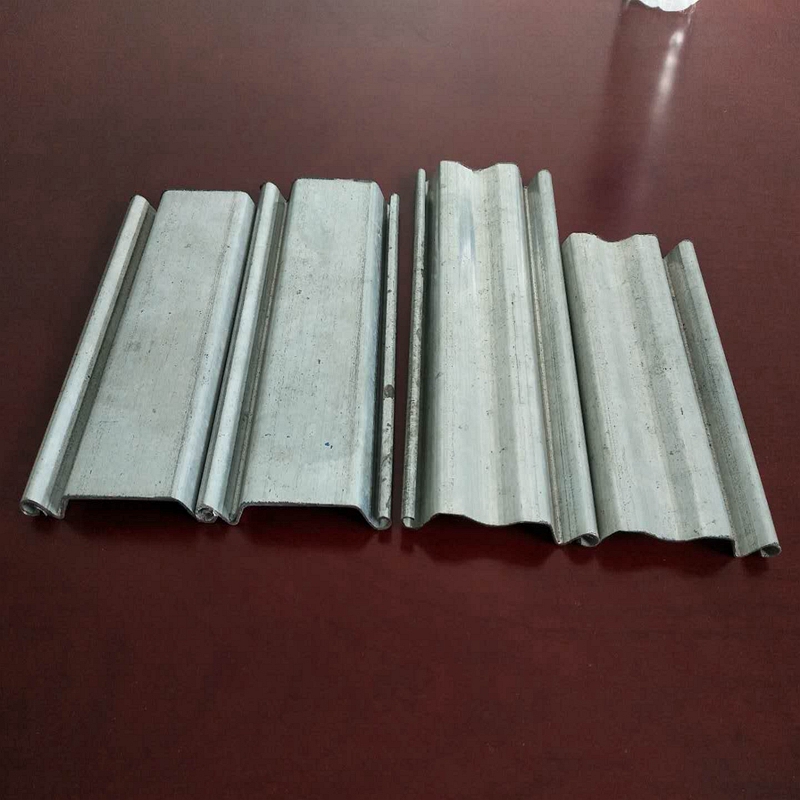

Machine pictures for reference

3kw High Speed Shutter Door Roll Forming Machine Space Save In Blue Color3kw High Speed Shutter Door Roll Forming Machine Space Save In Blue Color
