Metal Stud Cold Roll Forming Machine 3 Phase High Speed Water Resistance

ZhongHeng Machine Manufacture Co.,Ltd

Metal Stud Cold Roll Forming Machine 3 Phase High Speed Water Resistance

Brand Name : ZHONGHENG

Model Number : ZH60

Certification : CE/SGS/ISO9001

Place of Origin : China

MOQ : 1 set

Price : $11500-18000/set

Supply Ability : 80 sets/months

Delivery Time : 30 working days

Packaging Details : packaged by waterproof film cover

Condition : new

Type : Cold roll forming machine

Suitable material : Galvanized steel

Thickness : 0.5mm-1.2mm

Power : 4+3kw servo motor

Warranty : 2 years

Contact Now


Metal Stud Cold Roll Forming Machine 3 Phase High Speed Water Resistance

Technical Parts :

Technical parameters:
1Name of commodity & specificationc stud roll forming machine
2Main motor power3kw, 3 phase
3Hydraulic motor power3kw
4Hydraulic Pressure10-12MPa
5Voltage380V /3phase/ 50 HZ (or as your requirement)
6Control SystemPLC Delta Inverter
7Main Frame300mm H-Beam
8Backboard Thickness14mm
9Chain Size20mm
10Feeding Materialcolor steel coils
11Feeding Thickness0.3-1.2mm
12Productivity8-12m/min
13Roll Station11
14Roller Diameter70mm
15Roller material45# steel
16Cutter materialCr12 , quenched
17Cr-Plating Size0.05mm
18Overall Size3000×800×1000mm
19Total Weight2T
20ComponentsManual Uncoiler-------------------1 set
Guiding Platform------------------1 set
Coil Strip Leveler------------------1 set
Main Machine of Roll Forming------1 set
Electric-Motor---------------------1 set
Cutting Device--------------------1 set
Hydraulic Station------------------1 set
PLC Control-----------------------1 set
Supporter Table-------------------1 set
21WorkflowManual decoiling----feeding and guiding----roll forming----cut to length----run out table
22Packagenude in the container
23Minimum order quantity1 set
24Payment termsT/T(30% T/T pay in advance, the remaining 70% pay before ship)
25Delivery time30 working days later after receiving the deposit

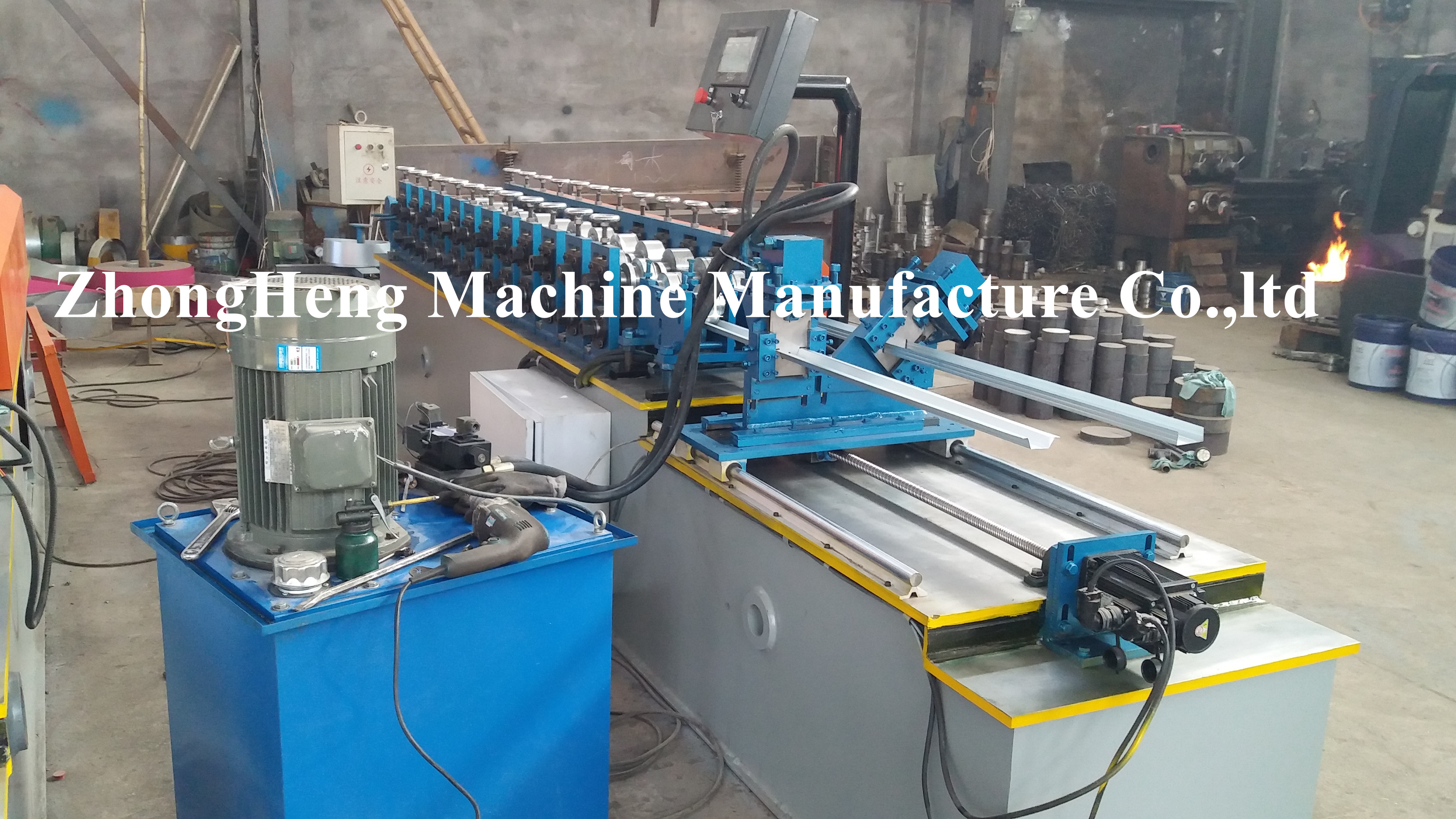

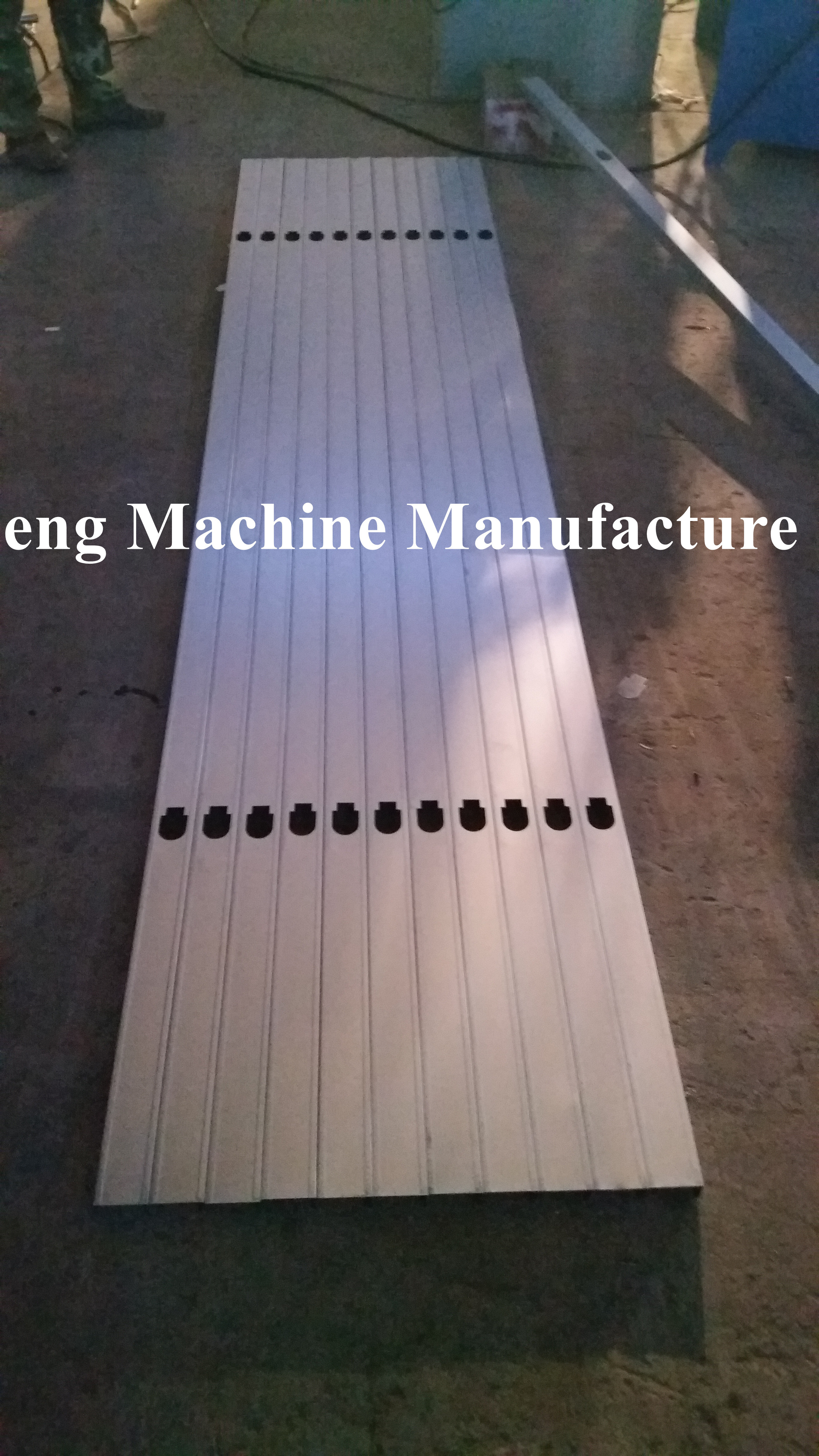

Machine picture
Metal Stud Cold Roll Forming Machine 3 Phase High Speed Water ResistanceMetal Stud Cold Roll Forming Machine 3 Phase High Speed Water ResistanceMetal Stud Cold Roll Forming Machine 3 Phase High Speed Water Resistance
